Aspherical Lenses

Material: Bk7,Fused Silica, Silicon, Germanium

  • Parabolic-Cylindrical Lenses
  • Plano-Parabolic Lenses
  • Bi-Parabolic Lenses

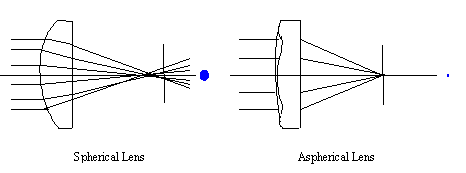

  • Technically, an aspherical lens is a lens whose curved surface does not conform to the shape of a sphere; an aspherical lens is used in correcting distortion in ultra-wideangle lenses or coma in large-aperture lenses brought about by spherical aberration. A aspherical lens element or two can substitute a bigger number of spherical lens elements to achieve similar or better optical results and to reduce the overall cost of production and more compact of the size of a lens - especially in the case of zoom lenses, where lens elements of more than 10 are common.

    On-axis paraboliod, hyperboloidal, ellipsoidal mirrors

    Convex, concave aspheric surfaces, on and off-axis

    Single and multiple element refractive systems

    Flat or curved unusual surface shape

    Custom design and design help.



    Specifications

    Surfaces of the second order: include paraboloid, hyperboloid, ellipsoid.

    Surfaces rotation of the second and higher orders.

    Material Bk7,Fused Silica, Silicon, Germanium
    Dimension 4 mm - 300 mm
    Dimension Tolerance 0.0/-0.15 mm
    Surface Quality 40/20 scratch & dig
    Relative aperature 1:0.5~1:10
    Centration 1 arc min
    Clear Aperture >90% of the dimension
    Coating Upon request


    Product

    Custom aspherical lens in different dimension and material is upon customer's requirement..
