Wedges
Material:
Bk7, Fused Silica, Germanium, Silicon, Sapphire, CaF2, MgF2, ZnSe and etc.
Specifications
| Material |
Bk7( fine annealed), Fused Silica |
| Available Shape |
Round, square, triangle, rectangularity |
| Dimensions Tolerance |
0.0/-0.15 mm |
| Surface Flatness |
¦Ë/4 - ¦Ë @ 632.8 nm |
| Angle Tolerance |
2'' - 5' |
| Surface Quality |
40/20 or 20/10 scratch & dig |
| Clear Aperture |
90% of the dimension |

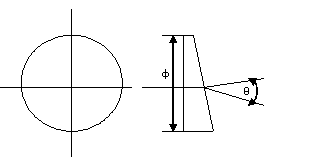

| Deviation Angle of Wedge |
1¡ã, 2¡ã, 4¡ã, 5¡ã,10¡ã,15¡ã,20¡ã,30¡ã,45¡ã |
| Coating |
Upon Reqest |
| Chamfers |
0.1- 0.25 mm x 45¡ã |
Product List
|
Product No.
|
¦Õ (mm)
|
Deviation
|
|
WG1201
|
12.7
|
1.0¡ã
|
|
WG1202
|
12.7
|
2.0¡ã
|
|
WG1204
|
12.7
|
4.0¡ã
|
|
WG1205
|
12.7
|
5.0¡ã
|
|
WG1210
|
12.7
|
10.0¡ã
|
|
WG1215
|
12.7
|
15.0¡ã
|
|
WG1220
|
12.7
|
20.0¡ã
|
|
WG1230
|
12.7
|
30.0¡ã
|
|
WG2502
|
25.4
|
2.0¡ã
|
|
WG2504
|
25.4
|
4.0¡ã
|
|
WG2505
|
25.4
|
5.0¡ã
|
|
WG2510
|
25.4
|
10.0¡ã
|
|
WG2515
|
25.4
|
15.0¡ã
|
|
WG3802
|
38.1
|
2.0¡ã
|
|
WG3804
|
38.1
|
4.0¡ã
|
|
WG5101
|
51.8
|
1.0¡ã
|
|
WG5104
|
51.8
|
4.0¡ã
|
|
WG5110
|
51.8
|
10.0¡ã
|
Note: Other
material, size, shape and wadge angle are available upon request.
|
|
